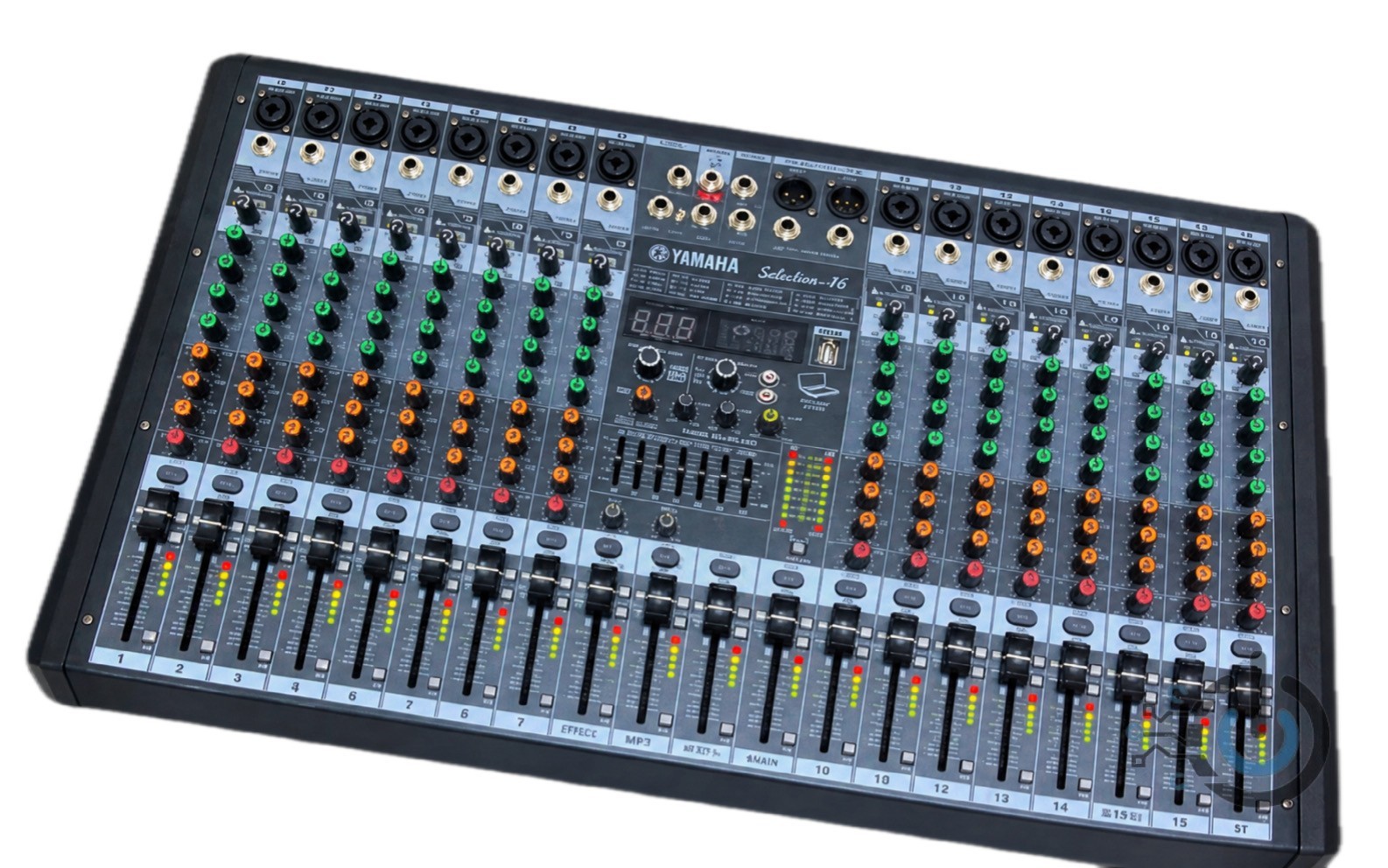

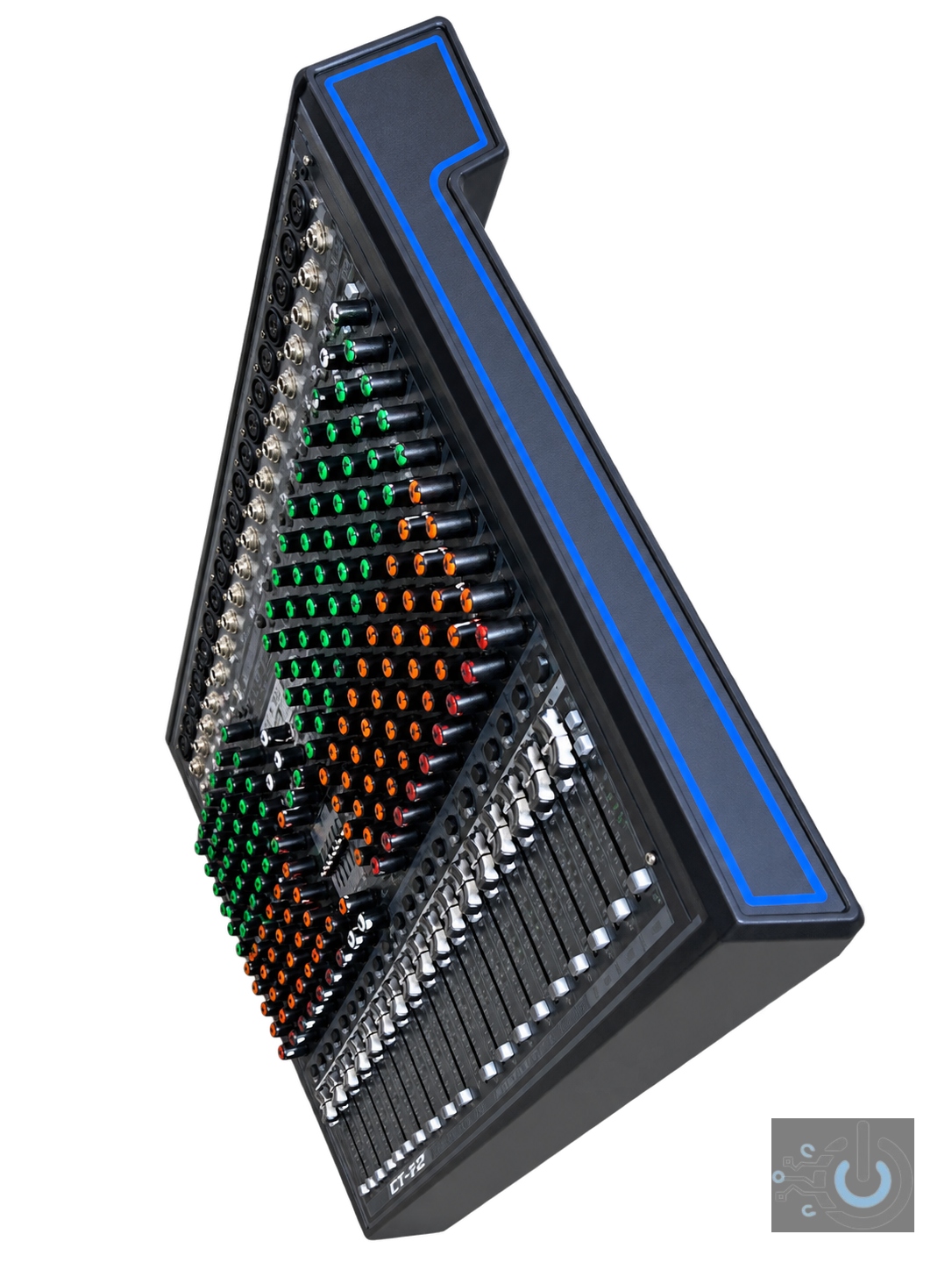

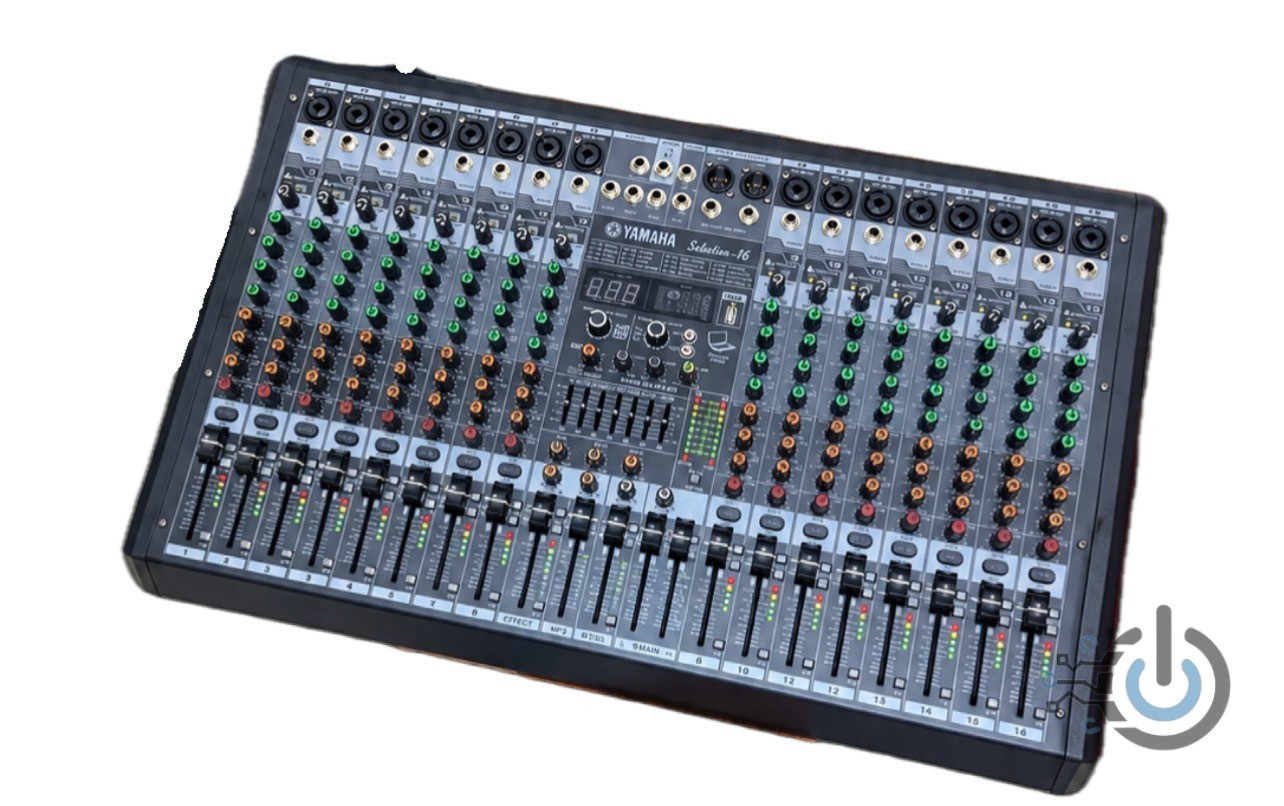

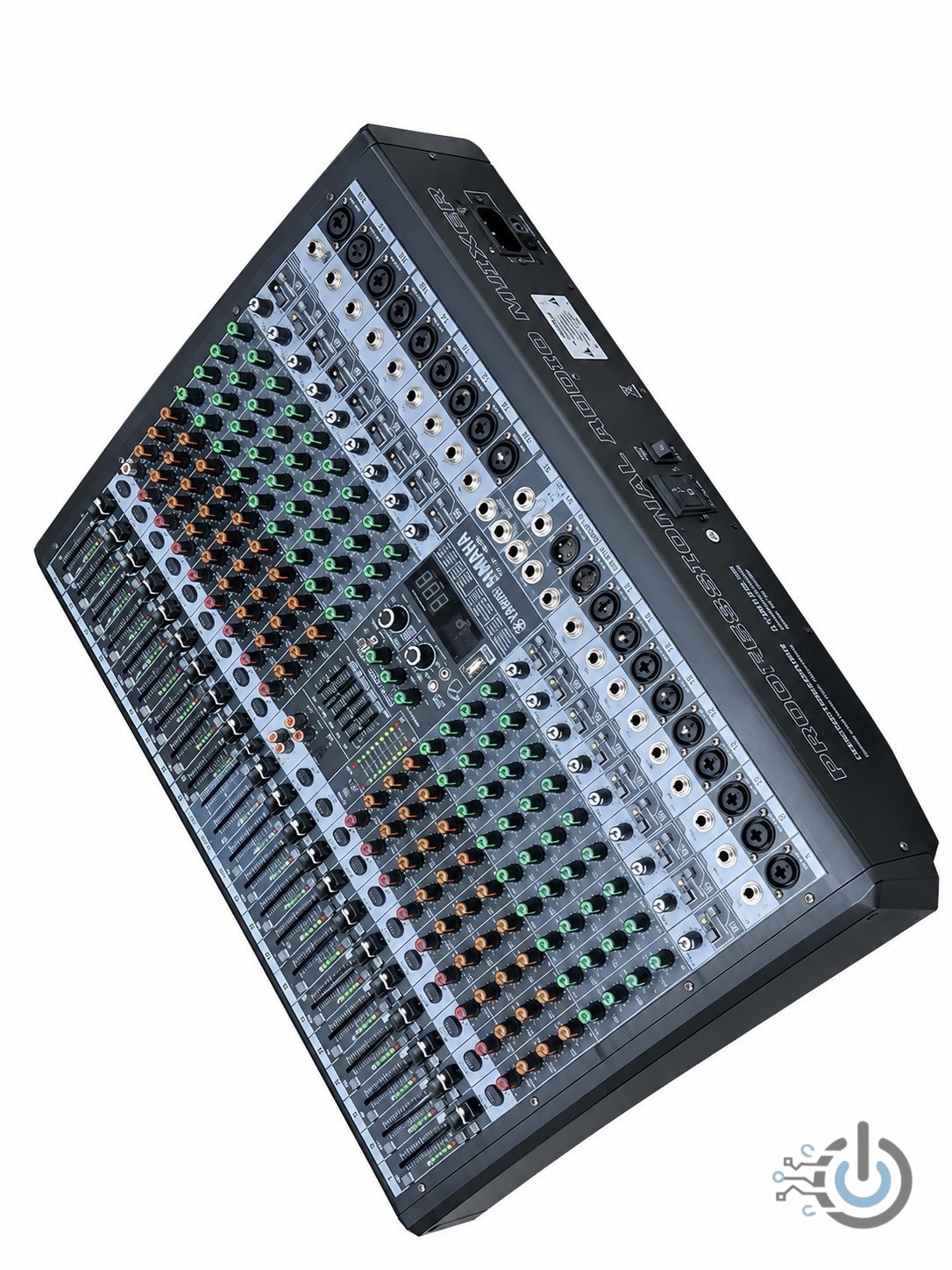

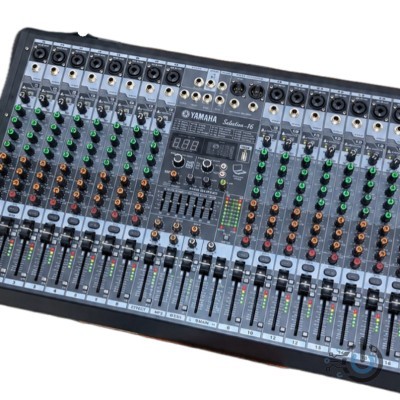

Yamaha selection 16 256 Dsp digital multi effects, channels mixer

🎤 Microphone Inputs

* XLR electronically balanced inputs
* Discrete input circuitry
* Mic E.I.N.: Up to -134 dB / 135.7 dB A-weighted
* Gain range: +10 to +60 dB
* Maximum input level: +12 dBu @ +10 dB gain
* Input impedance: Approx. 2.6 kΩ balanced
* Signal-to-noise ratio: 110 dB / 112 dB A-weighted
* Distortion (THD+N): 0.005% / 0.004% A-weighted
* Frequency response: <10 Hz–150 kHz (-1 dB) / <10 Hz–200 kHz (-3 dB)

🎚️ Line Inputs

* ¼” TRS electronically balanced
* Input impedance: Approx. 20 kΩ balanced / 10 kΩ unbalanced
* Gain range: -10 to +40 dB
* Maximum input level: +30 dBu

🎛️ EQ Section

Mono Channels

* Low: 80 Hz ±15 dB
* Mid: 100 Hz–8 kHz ±15 dB
* High: 12 kHz ±15 dB

Stereo Channels

* Low: 80 Hz ±15 dB
* Low Mid: 500 Hz ±15 dB
* High Mid: 3 kHz ±15 dB
* High: 12 kHz ±15 dB

🔊 Outputs

Main Outputs

* XLR electronically balanced
* ¼” TRS balanced
* Maximum output level: +28 dBu

Control Room Outputs

* ¼” TS unbalanced
* Maximum output level: +22 dBu

Headphones

* ¼” TRS unbalanced
* Maximum output: +19 dBu / 150 Ω (+25 dBm)

🔄 Stereo Aux Returns

* ¼” TRS electronically balanced
* Impedance: Approx. 20 kΩ balanced / 10 kΩ unbalanced
* Maximum input level: +22 dBu

🎚️ Aux Sends

* ¼” TS unbalanced
* Approx. 120 Ω impedance
* Maximum output level: +22 dBu

💻 DSP / Digital Processing

* 24-bit Sigma-Delta converter
* 64/128-times oversampling
* Sampling rate: 40 kHz

📊 Main Mix Performance

* Main mix noise level: down to approximately -101 dB
* Channel fader/mix noise performance specified down to approximately -100 dB
* Professional low-noise audio performance

⚡ Power

* Mains voltage: 230 V~, 50/60 Hz
* Standard IEC mains connection
* Fuse: T5AH 250 V
* Power configurations shown on the specification sheet for 4 Ω operation, including 170 W and 250 W options depending on channel configuration.

This powerful Mixer features balanced microphone and line inputs, flexible mono and stereo EQ sections, auxiliary sends/returns, balanced main outputs, headphone monitoring and 24-bit DSP processing for clean and reliable audio performance.
